Part Details | ELECTRICAL METER HOUSING
6625-00-056-9558 The outer component of an electrical meter designed to inclose, support and/or protect the meter mechanism. May include a window and/or provisions for adjusting the meter pointer. For items which inclose the complete functioning meter, see CASE, METER.
Alternate Parts: 222C2, 22-2C2, 222C2, 22-2C2, 222C2, 22-2C2, 222C2, 22-2C2, 6625-00-056-9558, 00-056-9558, 6625000569558, 000569558
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1963 | 00-056-9558 | 13601 ( HOUSING, ELECTRICAL METER ) |
REFERENCE DRAWINGS & PICTURES

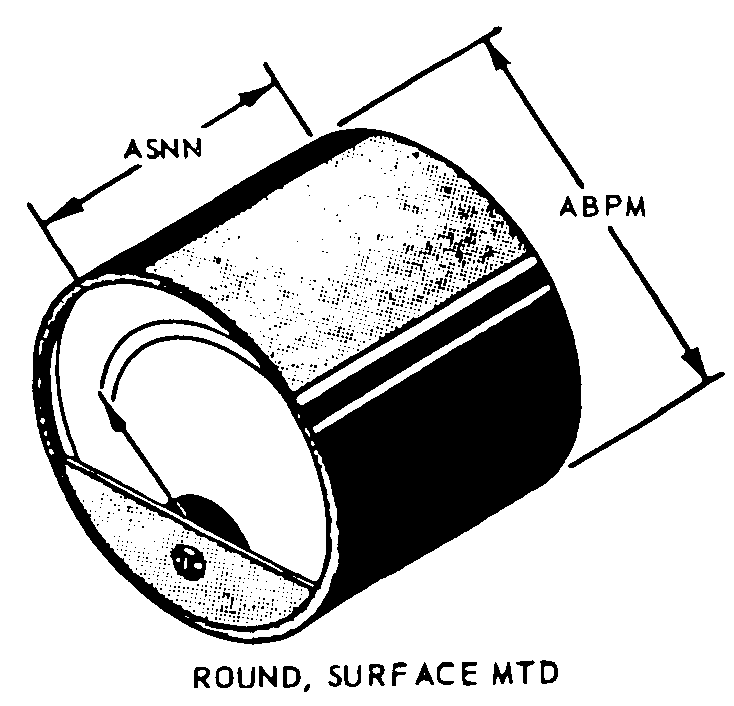

ROUND, SURFACE MTD
Cross Reference | NSN 6625-00-056-9558
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22-2C2 | 50027 | FLIGHTLINE ELECTRONICS, INC.DBA ULTRA ELECTRONICS, FLIGHTLINE |
| 22-2C2 | 35918 | HORIZON AEROSPACE LLC DBA MAGNETICSDIVISION |
| 22-2C2 | 1MQB3 | S I T CORPORATIONDBA SYRACUSE INTERNATIONAL |
| 22-2C2 | 79343 | SCIENCE APPLICATIONS INTERNATIONALCORPORATION |
Technical Data | NSN 6625-00-056-9558
| Characteristic | Specifications |
|---|---|
| WINDOW MATERIAL | GLASS |
| ADJUSTABLE POINTER | NOT PROVIDED |
| SURFACE TREATMENT | OXIDE |
| STYLE DESIGNATOR | 4 ROUND, SURFACE MTD |
| BODY DIAMETER | 1.938 INCHES NOMINAL |
| MOUNTING FLANGE DIAMETER | 2.000 INCHES NOMINAL |
| DEPTH TO MOUNTING FLANGE | 5.492 INCHES NOMINAL |
| MOUNTING CONFIGURATION | CLAMP,MOUNTED |
| INSULATING RING | NOT PROVIDED |
| RETAINING RING | NOT PROVIDED |
| AUXILIARY ILLUMINATION WINDOW | NOT PROVIDED |
| FSC APPLICATION DATA | INDICATOR,TEMPERATURE,THERMOCOUPLE |
