Part Details | LABORATORY FILTERING FUNNEL
6640-01-144-1849 An item with an integral porous or perforated plate, or with slits on the inside of a double wall.
Alternate Parts: 19970346, 19-97-0346, X2632500X7 ASSY D, X2632-500X7 ASSY D, 6640-01-144-1849, 01-144-1849, 6640011441849, 011441849
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | DEC 15, 1982 | 01-144-1849 | 13458 ( FUNNEL, FILTERING, LABORATORY ) |
REFERENCE DRAWINGS & PICTURES

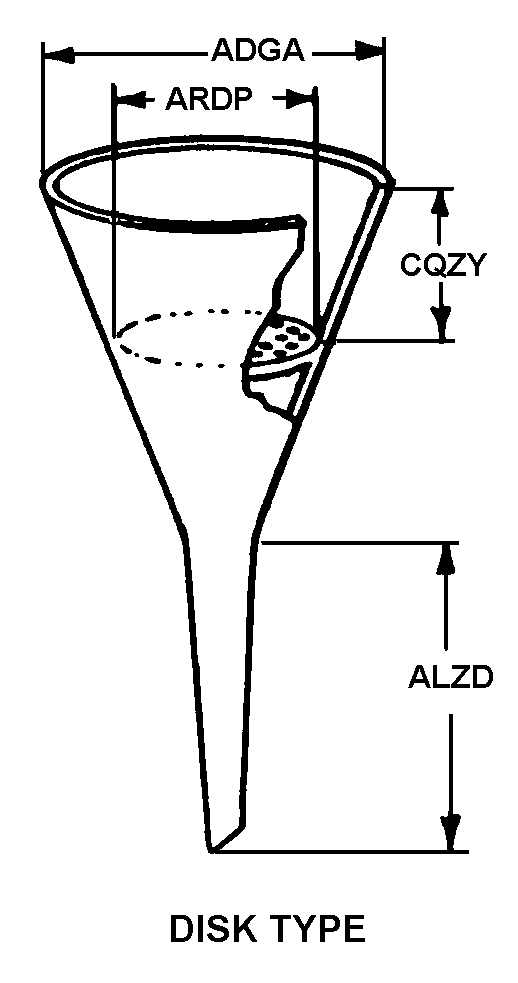

DISK TYPE
Cross Reference | NSN 6640-01-144-1849
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 19-97-0346 | 96169 | ELECTRIC BOAT CORPORATION |
| X2632-500X7 ASSY D | 96169 | ELECTRIC BOAT CORPORATION |
Technical Data | NSN 6640-01-144-1849
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DISK TYPE |
| OVERALL OUTSIDE DIAMETER | 4.250 INCHES NOMINAL |
| STEM LENGTH | 1.750 INCHES NOMINAL |
| DISK DIAMETER | 2.750 INCHES NOMINAL |
| DISTANCE FROM DISK TO TOP | 1.500 INCHES NOMINAL |
| FILTERING DISK TYPE AND SIZE | 0.470 INCHES FIXED PERFORATED |
| PRIMARY CONTAINER TYPE | CX ANY ACCEPTABLE |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
