Part Details | CAPILLARY TUBE AND BULB INDICATING THERMOMETER
6685-01-204-6367 A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS.
Alternate Parts: M534A319, M534A3-19, MAD116, MAD-116, 6685-01-204-6367, 01-204-6367, 6685012046367, 012046367
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | MAR 28, 1985 | 01-204-6367 | 07419 ( THERMOMETER, INDICATING, CAPILLARY TUBE AND BULB ) |
REFERENCE DRAWINGS & PICTURES

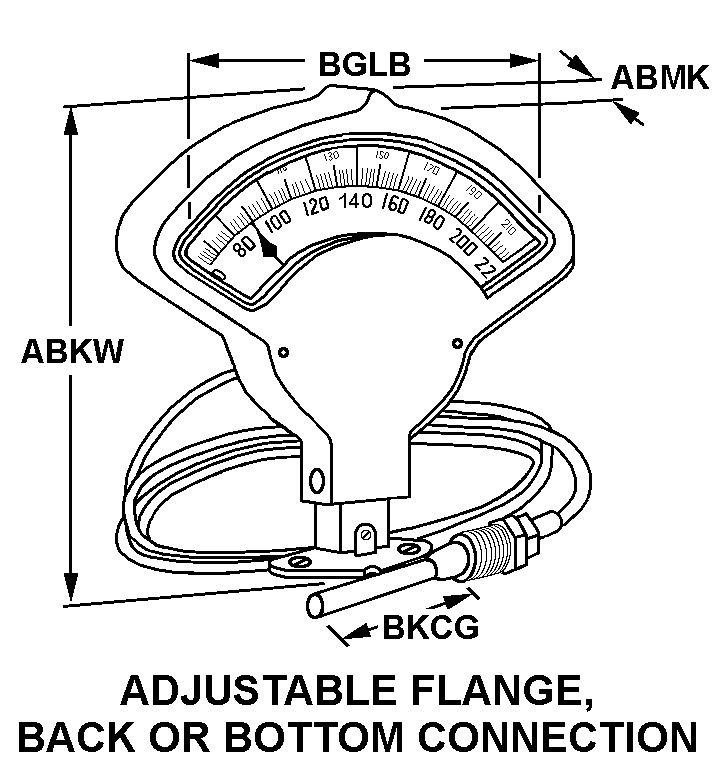

ADJUSTABLE FLANGE, BACK OR BOTTOM CONNECTION
Cross Reference | NSN 6685-01-204-6367
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M534A3-19 | 13305 | CAM FABRICATED SYSTEMS INC |
| MAD-116 | 62879 | TPF INC |
Technical Data | NSN 6685-01-204-6367
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | DIAL |
| SCALE MEASUREMENT RANGE | +0.000 TO +240.000 DEG FAHRENHEIT |
| STYLE DESIGNATOR | ADJUSTABLE FLANGE, BACK OR BOTTOM CONNECTION |
| BULB TIP LENGTH | 4.500 INCHES NOMINAL |
| OVERALL HEIGHT | 9.125 INCHES NOMINAL |
| OVERALL WIDTH | 2.500 INCHES NOMINAL |
| SCALE LENGTH | 7.438 INCHES NOMINAL |
| POINTER/PEN TYPE AND QUANTITY | 1 INDICATING SINGLE |
| BULB QUANTITY | 1 |
