Part Details | BORESIGHTING TARGET
6920-00-559-0598 A paper, plastic and/or metal item of square or rectangular shape designed as an aiming point to be used in bore sighting a gun to bring the axis of the barrel of a spotting pistol, spotting rifle, subcaliber rifle and/or telescope sight(s) into coaxial alignment with the center line of a cannon tube or artillery trainer barrel. It usually consists of a series of quartered circles printed on a white background with alternate quadrants printed in black. Crosses, center lines and other appropiate sighting marks may also be included.
Alternate Parts: 5590598, 6920005590598, 6920-00-559-0598, 00-559-0598, 6920005590598, 005590598
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 69 | JAN 01, 1963 | 00-559-0598 | 22485 ( TARGET, BORESIGHTING ) |

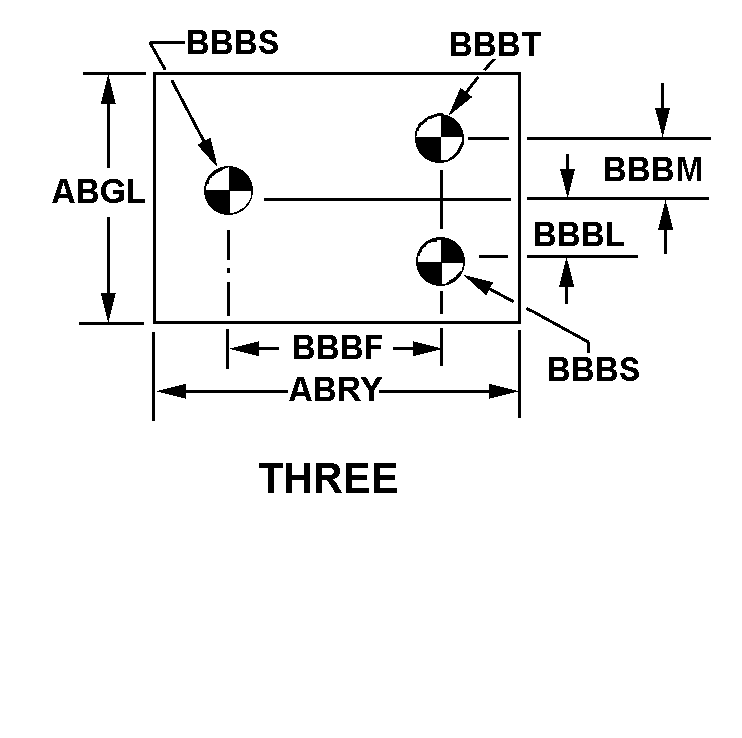

REFERENCE DRAWINGS & PICTURES
THREE
Cross Reference | NSN 6920-00-559-0598
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5590598 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
| 6920005590598 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
Technical Data | NSN 6920-00-559-0598
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | THREE |
| WIDTH | 34.000 INCHES NOMINAL |
| LENGTH | 34.000 INCHES NOMINAL |
| HORIZONTAL DISTANCE BETWEEN FIRST AND SECOND QUARTERED CIRCLE CENTERS | 20.811 INCHES NOMINAL |
| VERTICAL DISTANCE BETWEEN FIRST AND SECOND QUARTERED CIRCLE CENTERS | 12.985 INCHES NOMINAL |
| VERTICAL DISTANCE BETWEEN SECOND AND THIRD QUARTERED CIRCLE CENTERS | 10.524 INCHES NOMINAL |
| LARGEST QUARTERED CIRCLE RADIUS | 4.000 INCHES NOMINAL |
| SMALLEST QUARTERED CIRCLE RADIUS | 3.000 INCHES NOMINAL |
