Part Details | BORESIGHTING TARGET
6920-00-608-1275 A paper, plastic and/or metal item of square or rectangular shape designed as an aiming point to be used in bore sighting a gun to bring the axis of the barrel of a spotting pistol, spotting rifle, subcaliber rifle and/or telescope sight(s) into coaxial alignment with the center line of a cannon tube or artillery trainer barrel. It usually consists of a series of quartered circles printed on a white background with alternate quadrants printed in black. Crosses, center lines and other appropiate sighting marks may also be included.
Alternate Parts: 7309716, 6920006081275, 69206081275, 6920-608-1275, 6920-00-608-1275, 00-608-1275, 6920006081275, 006081275
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 69 | JAN 01, 1963 | 00-608-1275 | 22485 ( TARGET, BORESIGHTING ) |

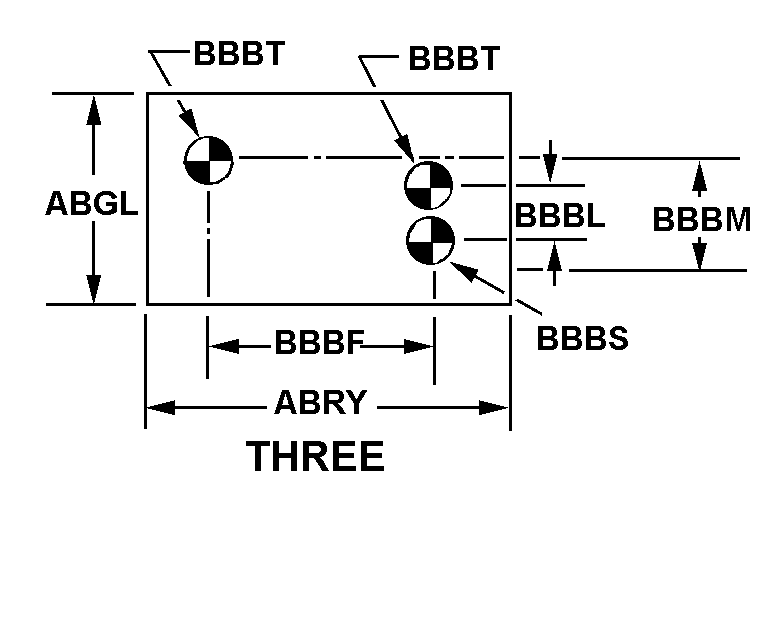

REFERENCE DRAWINGS & PICTURES
THREE
Cross Reference | NSN 6920-00-608-1275
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7309716 | 19206 | ARMY, UNITED STATES DEPARTMENT OFTHE |
| 6920006081275 | A00AM | E.C.A ETABLISSEMENT CENTRALDESAPPROVISIONNEMENTS DES FORCES |
| 6920-608-1275 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
Technical Data | NSN 6920-00-608-1275
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | THREE |
| WIDTH | 18.000 INCHES NOMINAL |
| LENGTH | 18.000 INCHES NOMINAL |
| HORIZONTAL DISTANCE BETWEEN FIRST AND SECOND QUARTERED CIRCLE CENTERS | 6.740 INCHES NOMINAL |
| VERTICAL DISTANCE BETWEEN FIRST AND SECOND QUARTERED CIRCLE CENTERS | 4.710 INCHES NOMINAL |
| VERTICAL DISTANCE BETWEEN SECOND AND THIRD QUARTERED CIRCLE CENTERS | 4.915 INCHES NOMINAL |
| LARGEST QUARTERED CIRCLE RADIUS | 2.500 INCHES NOMINAL |
| SMALLEST QUARTERED CIRCLE RADIUS | 2.000 INCHES NOMINAL |
