Part Details | NONMETALLIC CHANNEL
9390-01-225-1684 A structural shape fabricated from nonmetallic material(s) having two vertical flanges that extend in the same direction from each end of a horizontal base. The vertical flanges may have various type tips and additional flanges which extend on the same plane as the base. It may have a reinforcing agent(s) and backing Excludes SEAL, NONMETALLIC CHANNEL.
Alternate Parts: 76619988, 766199-88, 9390-01-225-1684, 01-225-1684, 9390012251684, 012251684
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | JAN 29, 1986 | 01-225-1684 | 30218 ( NONMETALLIC CHANNEL ) |
REFERENCE DRAWINGS & PICTURES

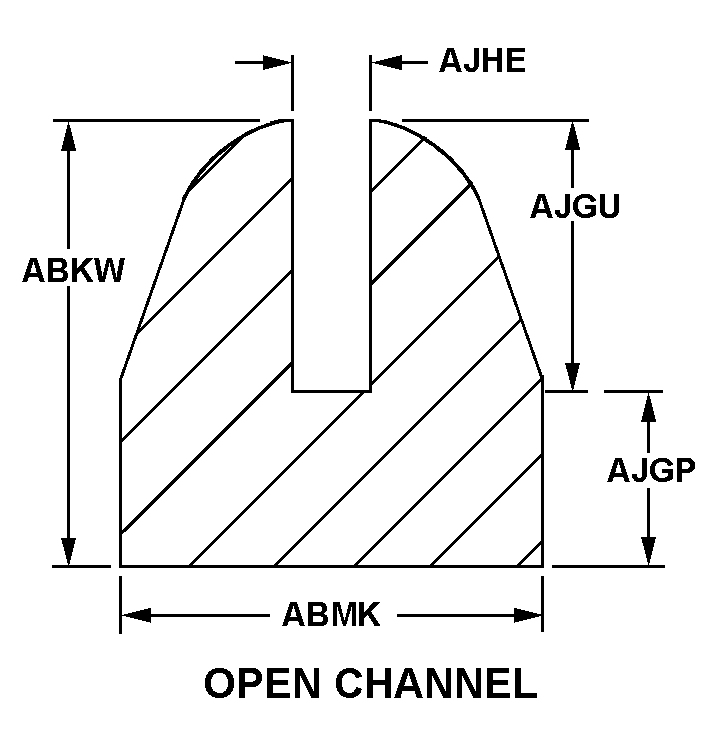

OPEN CHANNEL
LEFT INSIDE TAPER W/OUTSIDE RADIUS
RIGHT INSIDE TAPER W/OUTSIDE RADIUS
Cross Reference | NSN 9390-01-225-1684
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 766199-88 | 05869 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 9390-01-225-1684
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | OPEN CHANNEL |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| OVERALL WIDTH | 0.625 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.160 INCHES NOMINAL |
| FIRST SLOT/GROOVE DEPTH | 0.590 INCHES NOMINAL |
| FIRST SLOT/GROOVE WIDTH | 0.310 INCHES NOMINAL |
| LEFT-SIDE FLANGE TIP STYLE | 4 LEFT INSIDE TAPER W/OUTSIDE RADIUS |
| RIGHT-SIDE FLANGE TIP STYLE | 4 RIGHT INSIDE TAPER W/OUTSIDE RADIUS |
| MATERIAL | |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-STD-417 MIL STD SINGLE MATERIAL RESPONSE |
